Air Source Heat Pumps

Efficient and Eco-Friendly: Professional Installation from Enviroplanet

Book a FREE Survey

Discover the
Advantages of an
Air Source Heat Pump

  • Access £7.5k with the Boiler Upgrade Scheme
  • Enjoy Cost-Efficient Operation
  • Rest Assured with a 5 Year Warranty
  • Recommended installer by Mitsubishi Electric





Book a FREE Survey

Our recommended products

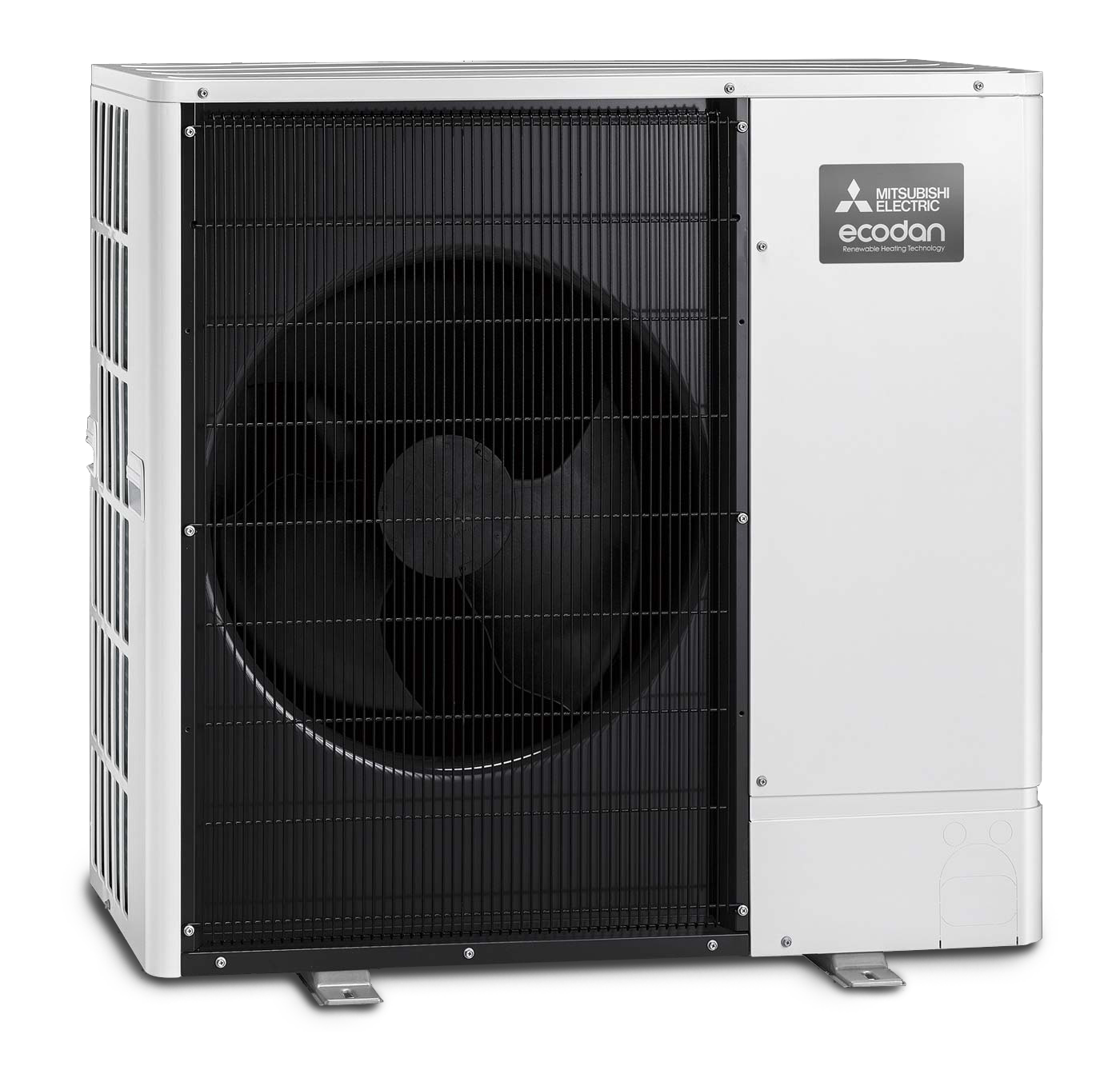

Ecodan Monobloc Air Source Heat Pump

PUZ-WM60VAA(-BS) / PUZ-WM85VAA(-BS)

The multi award winning Ecodan PUZ Monobloc Air Source Heat Pump is designed for the UK domestic or small commercial market. The Ecodan PUZ is A+++ rated with the use of R32, a refrigerant, that makes it highly efficient with low running costs.

The Ecodan PUZ is a single fan outdoor unit which is extremely quiet and flexible in where it can be positioned. In most cases planning permission is not needed.

The innovative and attractively designed Ecodan also comes MELCloud enabled. This allows the homeowner to be able to control it remotely from a smart phone, have the system monitored for maintenance and technical support can be provided remotely too.

The Ecodan has a range of compatible water cylinders – see below.



Technical Specs (WM60VAA)

Technical Specs (WM85VAA)

Get in touch

Technical Specifications

  •   WM60VAA WM85VAA
    HEAT PUMP SPACE HEATER - 55 ̊C ErP Rating A++ A++
    ƞs 142% 139%
    SCOP (MCS) 3.57 3.48
    HEAT PUMP SPACE HEATER - 35 ̊C ErP Rating A+++ A+++
    ƞs 190% 193%
    SCOP (MCS) 4.81 4.84
    HEAT PUMP COMBINATION
    HEATER - Large Profile    		 ErP Rating A+ A+
    ƞwh 145% 145%
    HEATING
    (A-7/W35)    		 Capacity (kW) 6.0 8.5
    Power Input (kW) 1.88 3.27
    COP 3.2 2.6
    OPERATING AMBIENT TEMPERATURE (°C DB) -20 ~ +35 -20 ~ +35
  •   WM60VAA WM85VAA
    SOUND DATA Pressure Level at 1m (dBA) 45 45
    Power Level (dBA) 58 58
    WATER DATA Pipework Size (mm) 22 28
    Flow Rate (l/min) 17 24
    Water Pressure Drop (kPa) 8.0 15.0
  •   WM60VAA WM85VAA
    DIMENSIONS (mm) Width 1050 1050
    Depth 480 480
    Height 1020 1020
    WEIGHT (kg) 98 98
    ELECTRICAL DATA Electrical Supply 220-240v, 50Hz 220-240v, 50Hz
    Phase Single Single
    Nominal Running Current [MAX] (A) 5.68 [13] 9.1 [22]
    Fuse Rating - MCB Sizes (A) 16 22
    REFRIGERANT CHARGE (kg) / CO2 EQUIVALENT (t) R32 (GWP 675) 2.2 / 1.49 2.2 / 1.49

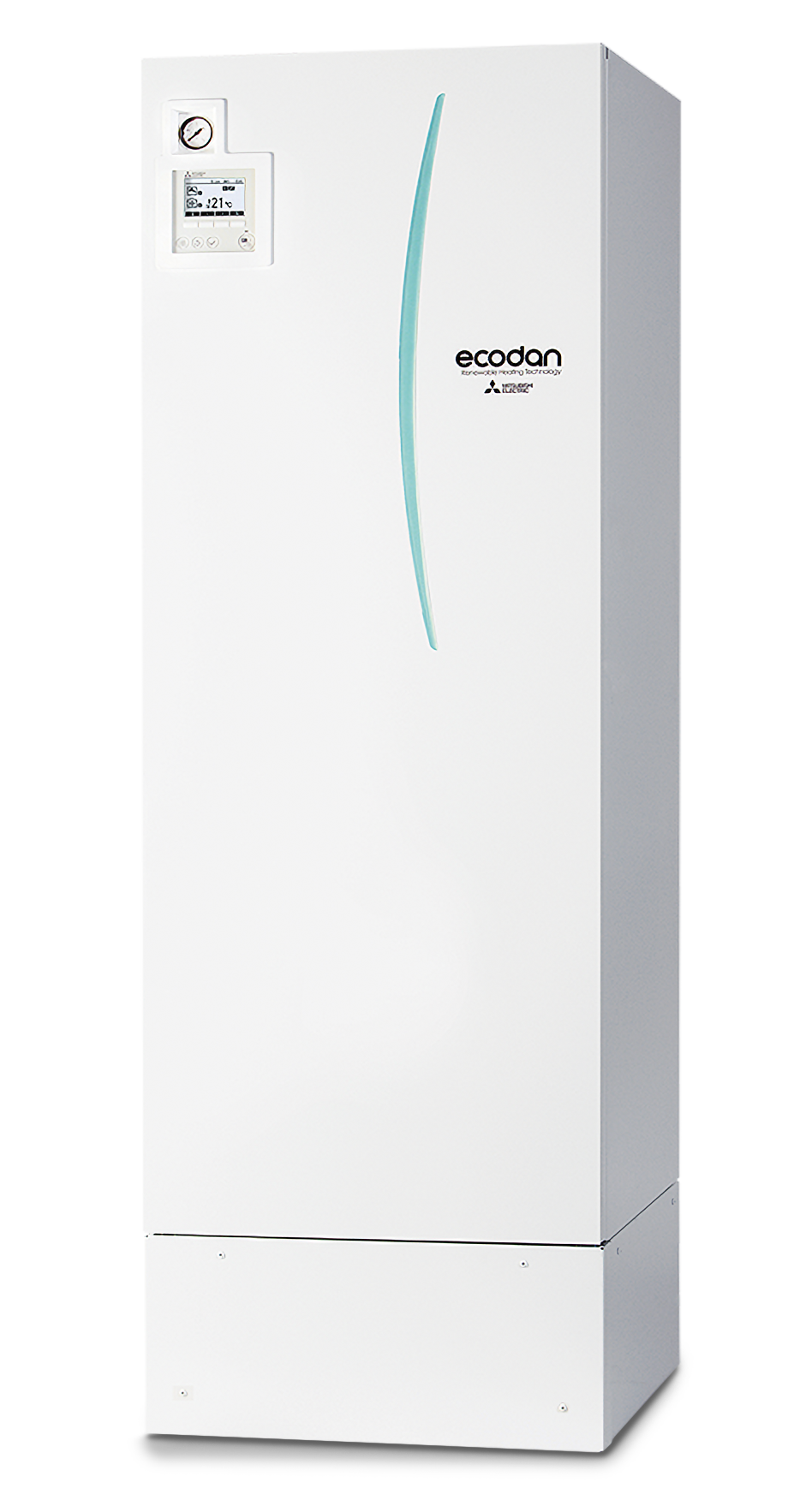

Slimline Pre-plumbed Cylinder

EHPT15-17XUKHLDW1S FTC6

The Mitsubishi cylinder is pre-plumbed meaning it has all the pipes and wires already connected to make installation quicker.

The use of plate heat exchange technology means that there is a more rapid heat up time and therefore improved performance. The cylinder has a hybrid function so can be used with air source heat pumps and traditional boilers. It comes with a 2 zone space heating control.

The FTL6 controller included  makes the system easy to navigate. The controller comes with energy monitoring and datalogging as standard.

The cylinder is MELCloud enabled. This allows the homeowner to be able to control it remotely from a smart phone, have the system monitored for maintenance and technical support can be provided remotely too.



Technical Specs

Get in touch

Technical Specifications

  • CYLINDER EHPT15X-UKHLDW1S EHPT17X-UKHLDW1S
    NOMINAL HOT WATER VOLUME (LITRES) 150 170
    ErP RATING C C
    HEAT LOSS (kWh/24hrs) 1.40 1.59
    HEAT LOSS (W) 58 66
  • CYLINDER EHPT15X-UKHLDW1S EHPT17X-UKHLDW1S
    WATER Flow Rate (l/min) - WM 50 / 60 / 85 14 / 17 / 24 14 / 17 / 24
    Primary Circuit Pump Grundfos UPM3L 25-75 130AZA
    Heating Circuit Pump Grundfos UPM3 AUTO 25-70 130
    Sanitary Hot Water Pump Grundfos UPSO 15-60 CIL2
    Connection Size (mm) Heating / DHW 22 / 22 22 / 22
    Charge Pressure (MPa (Bar)) 0.35 (3.5) 0.35 (3.5)
    WATER SAFETY Control Thermistor (°C) 80 80
    DHW Expansion Vessel (Litres) 12 18
    Control Thermistor (°C) 75 75
    Over Temperature Cut-Out (°C) 80 +/- 5 80 +/- 5
    Temp and Pressure Relief Valve (°C) / (MPa (Bar)) 90 / 1.0 (10.0) 90 / 1.0 (10.0)
    Expansion Relief Valve (Cold) (MPa (Bar)) 0.8 (8) 0.8 (8)
  • CYLINDER EHPT15X-UKHLDW1S EHPT17X-UKHLDW1S
    Electrical Data Electrical Supply 220-240v ~, 50Hz 220-240v ~, 50Hz
    Phase Single Single
    Capacity (kW) 3 3
    Max Running Current (A) 13 13
    Fuse Rating - MCB Sizes (A) 16 16
  • CYLINDER EHPT15X-UKHLDW1S EHPT17X-UKHLDW1S
    DIMENSIONS (mm) Width 676 676
    Depth 654 654
    Height 1516 1690
    WEIGHT EMPTY / FULL (kg) 59/209 63/233
    CYLINDER MATERIAL Cylinder Material Duplex stainless steel
    Insulation Type CFC / HCFC-free flame-retardant expanded Polyurethane
    Insulation Thickness (mm) 50 50
    GWP of Insulation 3.1 3.1
    ODP of Insulation 0 0
    MECHANICAL ZONES DHW and 1 Heating Zone
    OPTIONAL SIMPLIFIED WIRELESS ROOM THERMOSTAT
    AND WIRELESS RECEIVER    		 PAR-WT50-E Controller and PAR-WR51-E Receiver

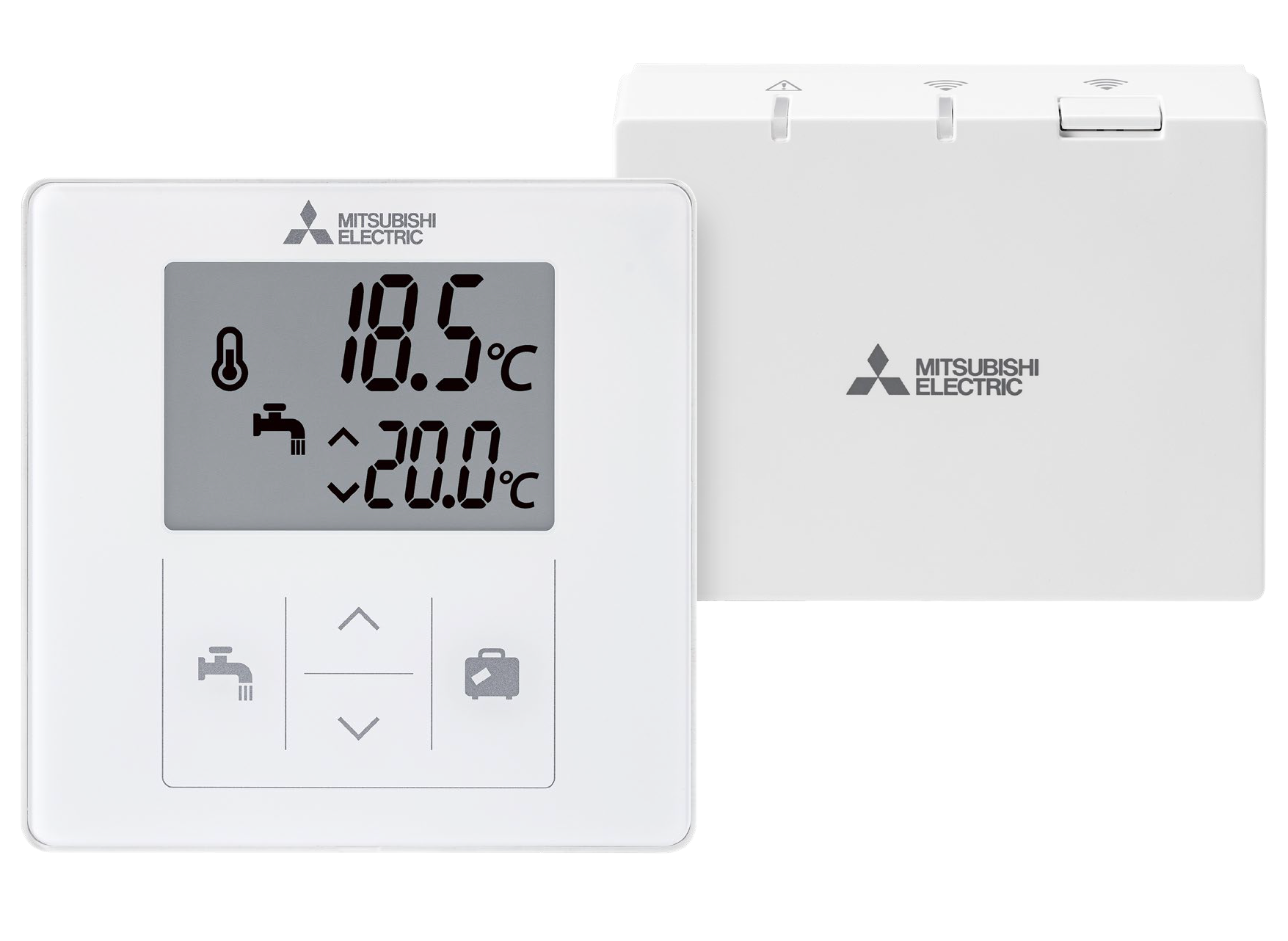

Wireless Remote Transmitter / Wireless Remote Receiver

PAR-WT60R-E /
PAR-WR61R-E

Key Features

  • Flat panel design
  • Wireless connectivity
  • Auto adaptive control logic
  • Touch buttons with user friendly icons Backlit display screen



Technical Specs

Get in touch

Technical Specifications

  • Model PAR-WT60R-E PAR-WR61R-E
    Description FTC Wireless Controller Transmitter FTC Wireless Controller Receiver
    Max Number of Units per System 8 1
    Power Supply 2 x AA Batteries FTC
    Dimensions (mm) Width 100 100
    Depth 23 30
    Height 100 80
    Weight ()kg 0.14 0.15
    Installation Location Free-Standing or Wall-Mounted Wall-Mounted
    Display Backlit LED Screen N/A
    Control Set Temperature
    Forced Domestic Hot Water (DHW)
    Holiday Mode
    Monitor Room Temperature
    Set Room Temperature
    Forced Domestic Hot Water (DHW)
    Smart Grid
    Holiday Mode
    Error

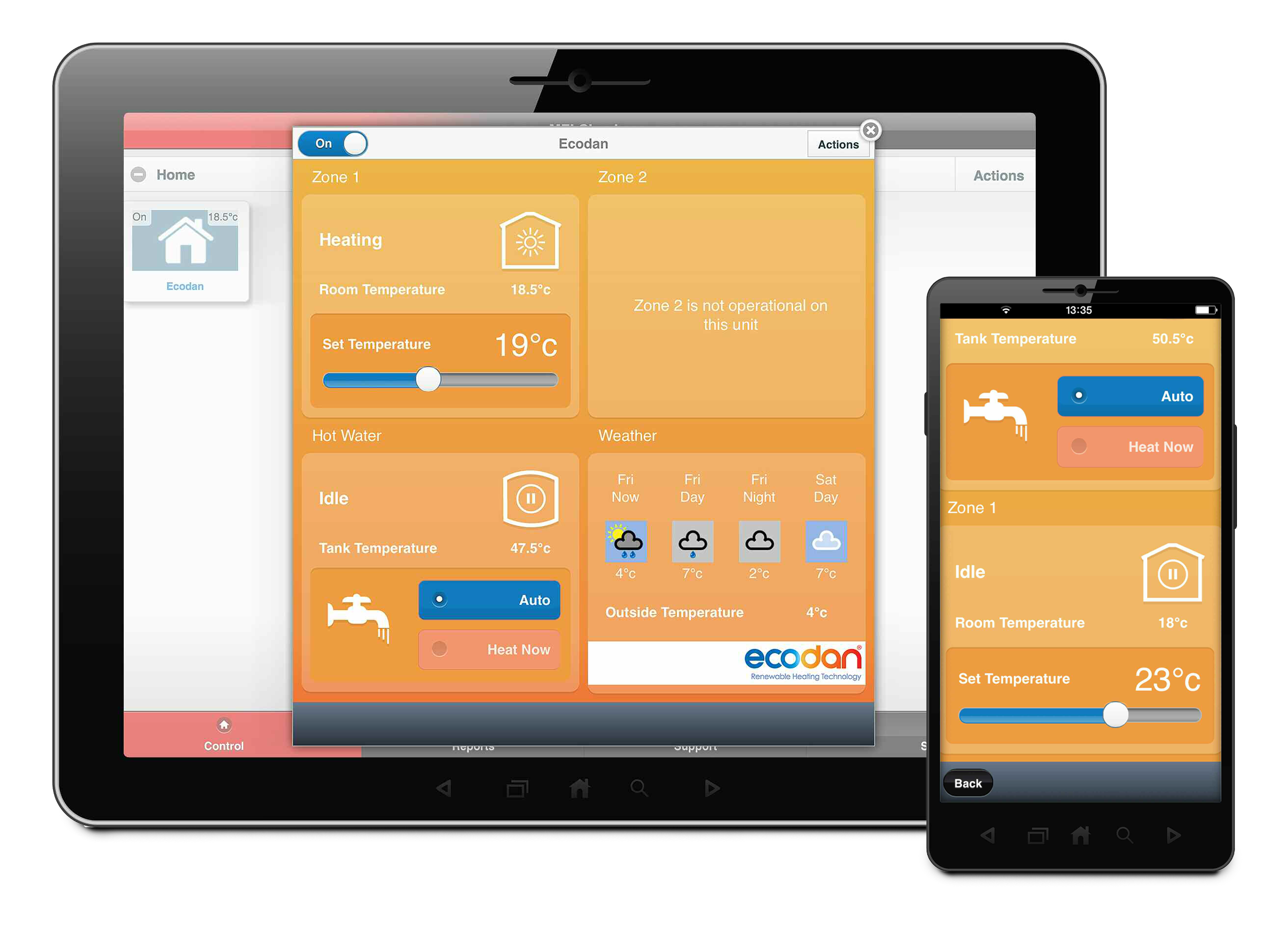

MELCLoud



MELCloud is a new Cloud based solution for controlling your Mitsubishi Electric Ecodan systems either locally or remotely by PC, Mac, Tablet or Smartphone via the Internet.

Set up and remote operation of your Ecodan heating system via MelCloud is simple and straight forward. All you need is a wireless connection in your home or building where the Ecodan is located and an internet connection on your mobile or fixed device. To set up the system, the router and the Ecodan Wi-Fi interface need pairing and this is done simply and quickly via the WPS button found on all mainstream routers.



Technical Specifications

Get in touch

Technical Specifications

  • ■ Holiday mode

    ■ Set up of 7 day weekly schedule

    ■ Temperature history reports

    ■ Operation mode reports

    ■ Live weather feed at location of Ecodan

    ■ Compatible with Apple, Android, Windows and Blackberry operating systems

    ■ Works on any PC / Mac / Tablet / Smartphone

    ■ Share / restrict access and control of the Ecodan system

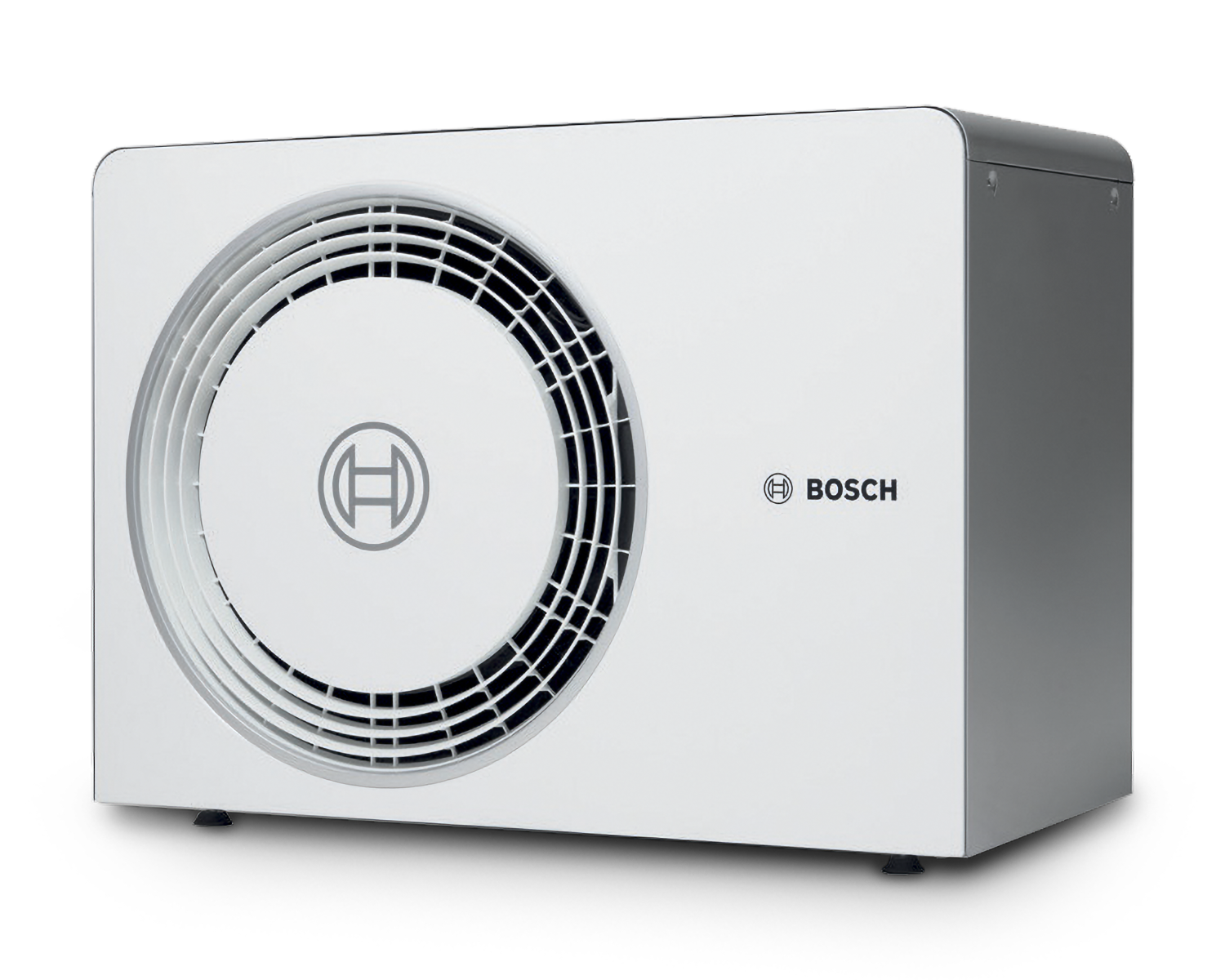

Compress 5800i heat pump

Smaller, quieter, easier

Purpose-built for UK homes and UK weather, the all-new and compact 5800i air to water heat pump brings a more responsible and efficient way to keep you warm, wherever you live.

Key Features

  • Quiet quality
    Our quietest heat pump ever and Quiet Mark certified
  • Stylish design
    Sleek, small, outdoor unit looks good in your garden
  • Performance
    Lower carbon emissions, higher flow temperature, improved home comfort
  • Peace of mind
    Remote monitoring via HomeCom Easy app for your reassurance
  • Space-saving
    All-in-one pre-plumb cylinder option saves space



Technical Specs

Get in touch

Technical Specifications

  • Outdoor unit Height: 800mm Width: 1100mm Depth: 540mm
    Indoor unit Height: 700mm Width: 400mm Depth: 290mm
    Pre-plumb cylinders
    (180L Slim, 210L, 250L)    		 Height: 1708mm – 1806mm Width: 653mm – 745mm Depth: 645mm – 747mm

Product Warranties

Many of the products we use offer the option of extended warranties please contact us to find out more.

Service Plans

From repair to maintenance on your existing system or new product at Enviroplanet we can offer various service plans to suit your needs. Please contact us to see how we can help you.

Frequently Asked Questions

Is the heating quality as good as gas?

Heat pumps are designed to provide a consistent temperature throughout the day, without costing you more, whereas traditional fossil fuel boilers fluctuate in temperature. Before installation a thorough home survey is carried out to ensure the system we design for your home is suitable to your energy needs.

Will the heat pump work in low temperatures?

Heat pumps are designed to work in temperatures as low as -20. When it gets very cold a heat pump will use a little more energy to keep your home cosy at a consistent temperature but this is still more efficient than a gas boiler.

Are heat pumps noisy?

No, modern heat pumps are as quiet as your fridge. There are regulations on the noise level of an air source heat pump, which is between 40-60 decibels within one metre. As most heat pumps are installed externally most people will not notice the noise.

Do air source heat pumps need a lot of maintenance?

They require no more maintenance than a gas boiler, and as they can be monitored remotely the repairs are not as costly.  Heat pumps are made to last 20 years, twice as long as a gas boiler.

Are air source heat pumps expensive?

With the Government Boiler Upgrade Scheme funding £7500 of the cost of the installation this has made air source heat pumps competitively priced in comparison to traditional gas boilers. And they’re good for the environment!

Do I need planning permission to install an air source heat pump?

In the majority of cases the installation is classed as permitted development rights. If you live in a listed or conservation area then planning permission maybe needed.

Can heat pumps provide hot water?

A heat pump requires a hot water cylinder to store hot water – it heats and stores the water at 55°C, occasionally heating it to 60°C for disinfection purposes.

Will I need to upgrade my heat pump?

Most houses will have radiators that are compatible with a heat pump, however, following a heating system performance estimate by the surveyor it may be beneficial to upgrade radiators to ensure that you get the most from your system.



Start your journey by contacting us now to book your FREE no obligation home assessment.

Your Green Journey Starts Here...

Get in touch

With the Government funding £7500 through the Boiler Upgrade Scheme (see below) towards the cost of an air source heat pump, now maybe the time to replace your existing fossil fuel or oil boiler.

Air source heat pumps work by absorbing heat from the air and transferring that heat into your home – they still work in temperatures well below freezing. Heat pumps run off electricity so are ideal to run alongside solar panels.

An external heat pump unit has to be installed on an external wall – 1 metre away from neighbouring properties, opening doors and bedroom windows. When correctly installed, modern heat pumps are no louder than a fridge.

At Enviroplanet we take great pride in installing Mitsubishi Ecodan heat pumps – these are available in a variety of sizes making them versatile to different sized homes. Should the homeowner’s energy needs require them, there are a range of accessories that come with them.

For a free no obligation assessment, please contact us on
01473 599127

Boiler Upgrade Scheme (BUS)

The Government have set aside £450 million for the Boiler Upgrade Scheme (BUS) to support their vision of net zero by 2050. The increased funding of £7500 for homeowners will be available until April 2025.

You maybe thinking that there must be lots of paperwork to receive this funding but other than giving your permission, there is no paperwork for you to complete – the installer does this all for you!

To be eligible to apply to the BUS the following conditions must be met:
A valid Energy Performance Certificate must be available for the property; all wall and loft insulation work must be completed before an application can be made for heat pump funding.

You must own your own home – new builds are not eligible. If you are in rented accommodation, the landlord must apply for the scheme not the tenant.

Key Benefits

  • More sustainable than traditional boilers
  • Works in low temperatures
  • Modern heat pumps are similar in noise levels to a fridge
  • No planning permission
  • Life expectancy 20 years
